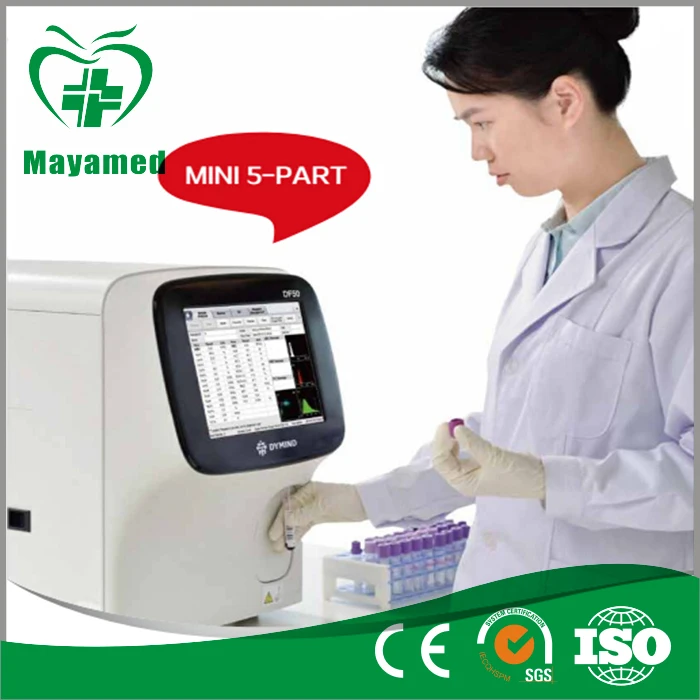

MY-B005B medical equipment portable Blood test machine Five classification of blood corpuscle analyzer

FOB Reference Price:Get Latest Price
$6,300.00 - $7,800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Blood Analysis System
Brand Name:
MAYA
Model Number:
MY-B005B
Place of Origin:
Guangdong, China (Mainland)
Product name:
blood corpuscle analyzer
Throughput:
Up to 60 samples per hour
Whole Blood:
15ul
Temperature:
15oC-30oC
Humidity:
30-85%
Air Pressure:
70-106 kPa
Power Requirement:
A.C. 100-240V, ≤300VA, 50/60Hz
Dimension:
360mm(L) * 470mm(W) * 430mm(H)
Weight:
28kg
Certificate:
CE ISO
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton box+Wooden box,Standard export packing
Port
Guangzhou, China
Lead Time :
in 15 days after payment receipt
Product Description

 MY-B005B medical equipment portable Blood test machine Five classification of blood corpuscle analyzer

Features:
*5-part differentiation, 27 parameters, 3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms for WBC, RBC and PLT.
*Tri-angle semi-conductor Laser scatter combined with chemical dye method, advanced flow cytometry
*Compact, powerful and affordable
*Only 15ul sampling volume
*Up to 60 samples per hour
*3 counting modes: venous blood, capillary blood and pre-diluted
*Capability to flag abnormal samples
*Large storage capacity: up to 50,000 samples



Technical Specifications:
Principles
Impedance method for WBC, RBC, PLT counting
Cyanide-free reagent for Hemoglobin test
Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel
Parameters
WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, and 4 research parameters LIC%, LIC#, ALY%, ALY#
3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms
Throughput
Up to 60 samples per hour
Sample Volume
Whole Blood: 15ul, Pre-diluted: 20ul
Test Mode
CBC CBC+DIFF
Performance
Carryover Repeatability Linearity
WBC ≤0.5% ≤2.0% (4-15×109/L) 0.00-300×109/L
RBC ≤0.5% ≤1.5% (3.5-6.0×1012/L) 0.00-8.5×1012/L
HGB ≤0.5% ≤1.5% (110-180g/L) 0-250g/L
PLT ≤1.0% ≤4.0% (150-500×109/L) 0.00-3000×109/L
Data Storage Capacity
Up to 50,000 results including numeric and graphical information

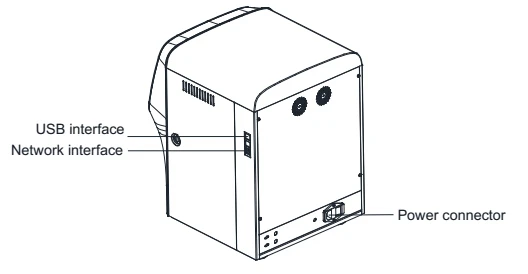

Communication
LAN port supports HL7 protocol



Operating Environment
Temperature: 15oC-30oC
Humidity: 30-85%
Air Pressure: 70-106 kPa
Power Requirement
A.C. 100-240V, ≤300VA, 50/60Hz



Dimension and Weight
360mm(L) × 470mm(W) × 430mm(H)
Weight: 28kg

Company Information
Our Services

1. For all your inquires about us, we will reply you in  detail within  24 hours.



2. We own professional team with professional attitude to recommend products and services  for you.



3. The  products  have one year free warranty,  after which they  can still be provided after-sales service.



4. We offer OEM services. And we can print your own logo on the product.



5. We have well-experienced engineers, who can help you better use our products.



Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

FAQ

Q: How to buy your products ?

A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start  production once getting the payment.



Q: What’s the warranty for the products ?

A: The free warranty is one year from the date of commissioning qualified.



Q: Can we visit your factory ?

A: Of course, welcome to visit our factory if you come to China.



Q: How long is the validity of quotation ?

A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.



Q: What’s the production date after we confirm the order ?

A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.



Please contact us for more detail information.
